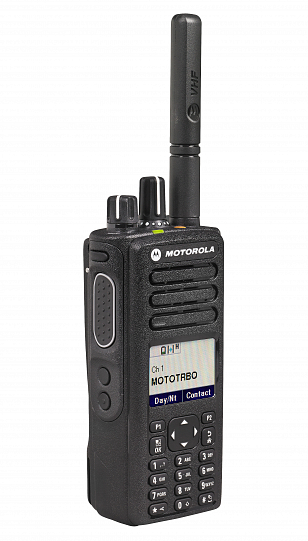

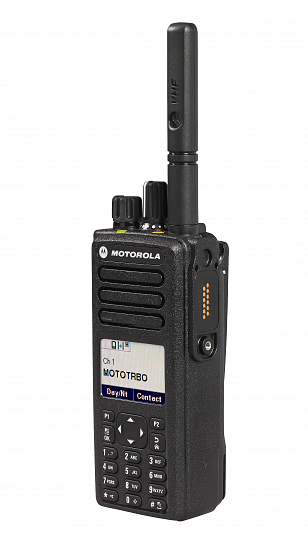

Motorola Solutions DP4801E portable radio

Kataloška številka: DP4801E

Motorola DP4801E ima kapaciteto 1000 kanalov, ima 5-vrstični barvni LCD zaslon, ki se ga odlično vidi tudi na soncu. Pod zaslonom najdemo tudi gumbe za hitro navigacijo po menijih ter polno tipkovnico, ki uporabniku omogoča pisanje sporočil. Je enostavna za uporabo, ima pet programabilnih gumbov in gumb za klic v sili.
Motorola DP4801E ima vgrajen GNSS sistem (GPS in GLONASS) in Bluetooth 4.0, za doplačilo pa lahko pridobite še Wi-Fi, “man-down” funkcijo in notranje sledenje.
Motorolo DP4801E odlikuje odlična zaščita pred vdorom vode in prahom po standardu IP68.

Motorola Solutions DP4801E portable radio has some great accessories like waterproof bags, earbuds, surveillance kits, leather cases etc.

Embedded Bluetooth audio (option)

Embedded into the radio to enable connectivity with wireless accessories including Motorola’s unique Operations Critical Wireless earpieces designed for rugged and reliable communications.

Large, Full-colour Display

Features a 5-line color display with a flexible menu-driven interface. Icons and large easy-to-use navigation buttons ease message reading and menu navigation.

Integrated GPS

Locate mobile work teams using integrated GPS.

DP4800E DP4801E
DP4800E DP4801E
Motorola Solutions DP4801E portable radio

Productivity-enhancing Data Applications

Features the industry’s largest application developer program to enable a wide variety of customised applications including: location tracking, Bluetooth data, email gateways, dispatch, telephony, man-down and work order ticket management.

Capacity Plus

Single-site digital trunking system that maximises the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site without adding new frequencies.

Linked Capacity Plus

Linked Capacity Plus is an entry level, multi-site digital trunking system configuration for the MOTOTRBO platform. It leverages the high capacity of Capacity Plus, with the wide area coverage capabilities of IP Site Connect to keep your staff at various locations connected with an affordable high capacity, wide area trunking solution.

Rugged Design

Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP57).

Emergency Button

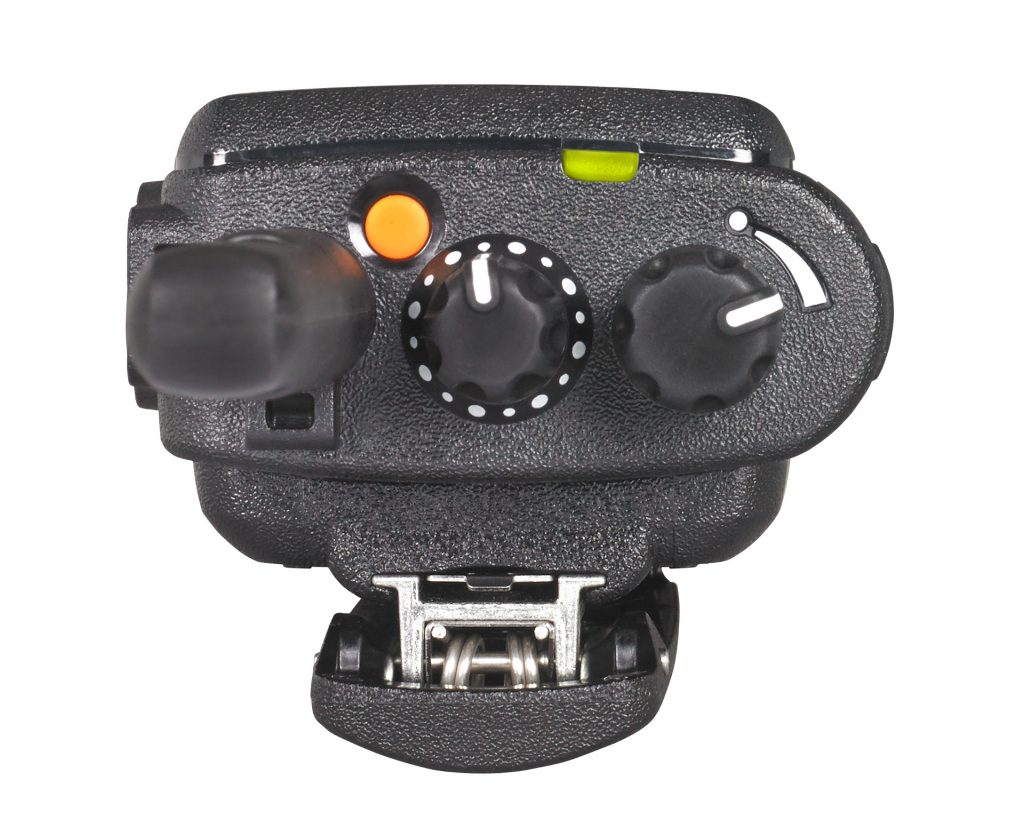

Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation.

DP4800E DP4801E

Performance Characteristics

  • Frequency band

    UHF, VHF, 300MHz

  • Power output

    UHF, 300Mhz: 1W/4W
    VHF: 1W/5W

  • Battery life (based on a 05 05 90 duty cycle)

    Up to 29 hrs (digital) / 22 hrs (analogue)

  • Repeater capable


Physical Characteristics

  • Dimensions H x W x D (with standard battery)

    DP4800e/DP4801e: 130 x 55 x 36 mm (5.1 x 2.2 x 1.4 in)
    DP4600e/DP4601e: 130 x 55 x 36 mm (5.1 x 2.2 x 1.4 in)
    DP4400e/DP4401e: 130 x 55 x 34 mm (5.1 x 2.2 x 1.4 in)

  • Weight (With 1400mAh LiIon battery)

    DP4800e/DP4801e: 315 g (11 oz)
    DP4600e/DP4601e: 315 g (11 oz)
    DP4400e/DP4401e: 290 g (10 oz)

Radio Features

  • Number of channels

    DP4801e/DP4800e: 1000 channels
    DP4601e/DP4600e: 1000 channels
    DP4401e/DP4400e: 32 channels

  • Channel spacing

    12.5, 20, 25


  • Digital technology


  • System type

    Conventional, IP Site Connect, Capacity Plus, Capacity Max, Connect Plus Trunking

User Environment

  • Mil spec

    810 C, 810 D, 810 E, 810 F, 810 G

  • TIA4950, Factory Mutual (FM) options



  • Standard warranty

    2 years
