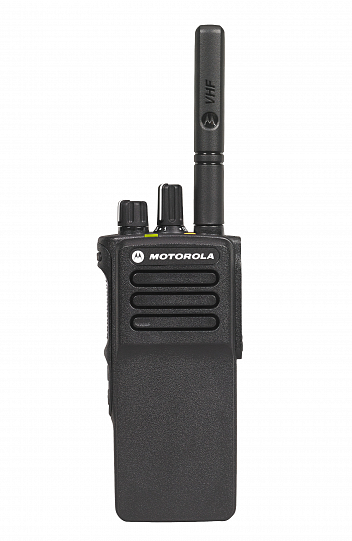

Motorola Solutions DP4401 portable radio

Kataloška številka: DP4401E

From the factory worker making components to the road crew making repairs, MOTOTRBO™can transform your enterprise and make employee interactions smarter and safer. Our best-in-class audio and unrivaled data capabilities empower people like never before.

The DP4400 / DP4401 portable two-way radio delivers unrivaled voice and data communications with optional integrated GPS and Bluetooth. This feature-rich radio delivers plus best-in-class audio that includes Intelligent Audio and customizable voice announcements for status notifications.

Available in UHF and VHF frequency bands, the DP4400 / DP4401 is easy to use and features up to 32 channel capacity, five programmable buttons, dedicated emergency button, IP57 specifications for submersibility and FM or TIA intrinsically safe options.

Motorola Solutions DP4401 portable radio has some great accessories like earpieces, chargers, belt clips etc.

Best-in-class Audio

Loud front-facing speaker and Intelligent Audio feature that automatically adjusts the radio volume according the environment’s noise level

Productivity-enhancing Data Applications

Features the industry’s largest Application Developer Programme to enable a wide variety of customized applications including: location tracking, email gateways, dispatch, telephony, man-down and work order ticket management

Capacity Plus

Single-site digital trunking system that maximizes the capacity of your MOTOTRBO system. Use it to enable a high volume of voice and data communication for over a thousand users at a single site without adding new frequencies

DP4400E DP4401E
DP4400E DP4401E

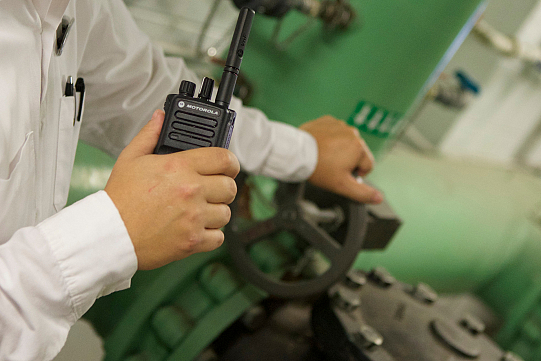

Motorola Solutions DP4401 portable radio

Linked Capacity Plus

Linked Capacity Plus is a multi-site digital trunking system for the MOTOTRBO platform. It leverages the high capacity of Capacity Plus, with the wide area coverage capabilities of IP Site Connect to keep your staff at various locations connected with an affordable high-capacity, wide-area trunking solution

Basic or Enhanced Privacy

Built-in scrambling for increased security

Transmit Interrupt

Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

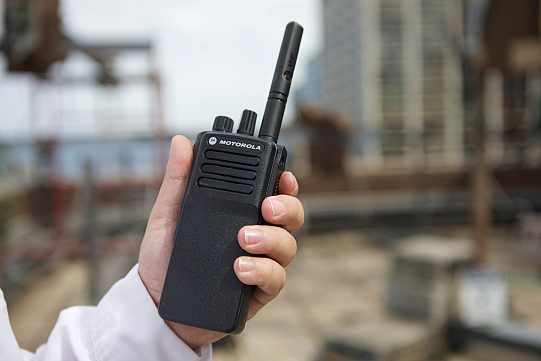

Motorola Solutions DP4401 portable radio

Integrated GPS

Locate mobile work teams using integrated GPS

Text Messaging

Send preprogrammed update messages to team members when radio communications need to be delivered without interrupting workers or guests

Motorola Solutions DP4400E portable radio
DP4400E DP4401E

IP Site Connect

A digital solution that uses the internet to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers

Rugged Design

Tightly sealed against wind and dust, and submersible in up to one meter of water for 30 minutes (IP67).

Emergency Button

Orange button on the top of the radio can be programmed to send an alert to a supervisor or dispatcher during an emergency situation


  • 24-mesečna garancija velja le na radijsko postajo in ne na dodatke (baterija, polnilec, antena, zaponka za pas) ki so v paketu.
  • 12-mesečna garancija velja na baterijo, polnilec, anteno, zaponko za pas (ob uporabi po priporočilih proizvajalca).

Splošne specifikacije:

  • Število kanalov: 32
  • Anlogno-digitalen način delovanja
  • IP68
  • Frekvenčno področje: VHF (136-174 MHz) in UHF (403-527 MHz)
  • Moč: VHF (1 W,  5 W), UHF (1 W, 4 W)
  • Napetost: 7.5 V
  • Temperatura delovanja: -30°C / +60°C
  • GPS: Da

Dimenzije radia z baterijo:

  • IMPRES Li-Ion 2100 mAH IP68 (PMNN4491B) – 130 x 55 x 34 mm
  • IMPRES Li-Ion 3000 mAH LV IP68 (PMNN4488A) – 130 x 55 x 40 mm
  • NiMH 1400 mAh IP67 – 130 x 55 x 37 mm

Teža radia z baterijo:

  • IMPRES Li-Ion 2100 mAH IP68 (PMNN4491B) – 295 g
  • IMPRES Li-Ion 3000 mAH LV IP68 (PMNN4488A) – 325 g
  • NiMH 1400 mAh IP67 – 380 g

Lastnosti baterije:

  • IMPRES Li-Ion 2100 mAH IP68 (PMNN4491B) – Analogen: 14.5  ur/ Digitalen: 19.0 ur
  • IMPRES Li-Ion 3000 mAH LV IP68 (PMNN4488A) – Analogen: 21.5  ur/ Digitalen: 28.0  ur
  • NiMH 1400 mAh IP67 – Analogen: 9.5 ur/ Digitalen: 12.0 ur

Sprejemnik/ Oddajnik:

  • Širina kanalov: 12.5 kHz / 20kHz / 25 kHz
