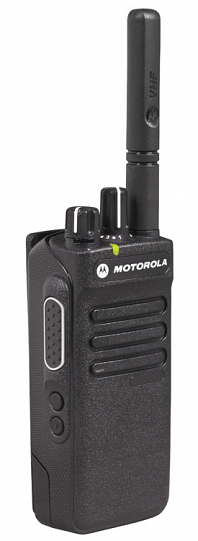

Motorola Solutions DP2400e portable radio

Item number: DP2400e

Equip your team with the world’s most scalable digital radio solution. The DP2400 offers best-in-class audio in a scalable solution to your demanding communication needs. Intelligent Audio and voice announcement features enable easy communication in difficult work environments. Also, it’s analogue interoperable, enabling you to make the transition to digital at your own pace, all at a value that stands up to the competition.

Available in UHF and VHF frequency bands, the DP2400 is a non-display model that features 16-channel capacity, three programmable buttons and IP55 specifications for water protection.

Standard package consists of:

  • DP2400E portable radio
  • 1650 mAh Li-Ion battery
  • Single charger
  • Antenna
  • Belt clip (PMLN7008A)
  • Documentation

Motorola Solutions DP2400e portable radio

IP Site Connect
A digital solution that uses an IP network (such as the internet) to extend the voice and data capabilities of MOTOTRBO. Use it to link up to 15 sites for communication among geographically dispersed locations, to create wide area coverage or enhance coverage at a single site with physical barriers.

Transmit Interrupt (option)
Enables a user to interrupt another radio conversation to deliver critical communication exactly when and where it’s needed.

Motorola Solutions DP2400e portable radio

Basic (standard) or Enhanced Privacy (option)
Built-in scrambling for increased security.

Rugged Design
Tightly sealed against wind and dust with a water protection rating of IP55.


Industry-leading Audio
When it comes to exceptional audio clarity, the quality of digital can’t be denied. DP2000 Series portables deliver digital quality throughout your coverage area plus unique features to help your employees hear and speak clearly, wherever they work. With Intelligent Audio, the radio volume automatically adjusts to compensate for background noise so workers don’t have to adjust their radio volume to avoid missing a call in loud situations or disturbing others when they move into quiet places.

Analogue and Digital Interoperability
Operates in both analogue and digital modes. Features such as the dynamic mixed mode repeater streamlines automatic switching between analogue and digital calls – meaning you only need one repeater to operate both modes.

Performance Charasteristics

·        Power output – 1W/4W – UHF, 1W/5W – VHF

·        Battery life (based on a 05 05 90 duty cycle) – 11.5 hours in digital mode, 8 hours in analog mode

·        Frequency band – VHF, UHF

·        4 5 Watt – Yes

·        Repeater capable – Yes

·        Standard battery chemistry type – Lithium Ion

·        1 Watt – Yes

Performance Charasteristics

·        Emergency button – Programmable

·        Keypad – None

·        Display – No display

·        Weight (with standard battery) – 9.3 oz (265 g)

·        Dimensions H x W x D (with standard battery) – 122 x 56 x 36.4 mm (4.80 x 2.20 x 1.43 in.)

Physical Charasteristics

·        Transmit interrupt – Yes

·        Digital private line – Yes

·        Private line – Yes

·        Monitor Permanent (Sticky) Monitor – Yes

·        Lone worker – Yes

·        Voice announcement – Yes

·        Signalling – MDC (Encode/Decode), Quik-Call II (Encode/Decode), DTMF Encode

·        Intelligent audio – Yes

·        Programmable buttons – Yes

·        Voice operated transmit (VOX) – Yes

·        Time out timer – Yes

·        Talkaround – Yes

·        Scan types – Normal, Priority, Dual priority, Nuisance channel delete, Talk group, All group, System, Home revert

·        Phone book – Yes

·        Group call – Yes

·        One to one calling – Yes

·        Missed call alerts – Yes

·        CPS (Customer Programming Software) – Yes

·        Channel spacing – 6.25, 12.5, 25

·        Number of channels – 16

·        Channel scan – Yes

·        Caller ID – Yes

·        Call tones – Yes

·        Call forward – Yes

·        Busy channel lockout – Yes


·        System type – Conventional, TDMA, Capacity Plus, IP Site Connect

·        Digital technology – Yes

User Environment

·        IP Standards – IP55

·        Mil spec – 810 C, 810 D, 810 E, 810 F, 810 G

·        Noise reduction software – Yes


·        Standard package – IMPRES Li-Ion 2150 mAh battery (IP57), Standard UHF or VHF antenna, Accessory Dust Cover, 2.5″ Belt Clip (PMLN7008), User Guide, 2 year warranty.

·        Standard warranty – 2 years
