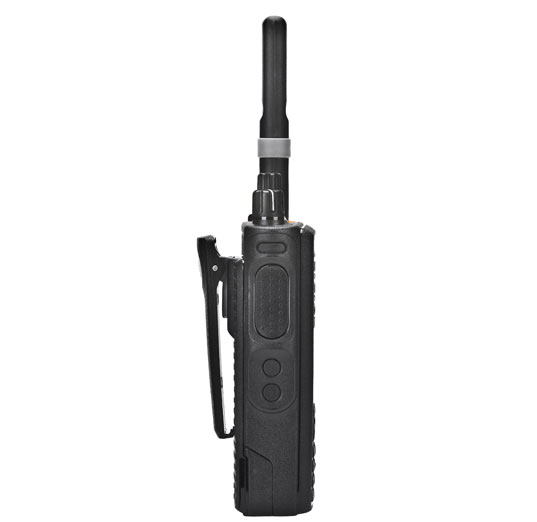

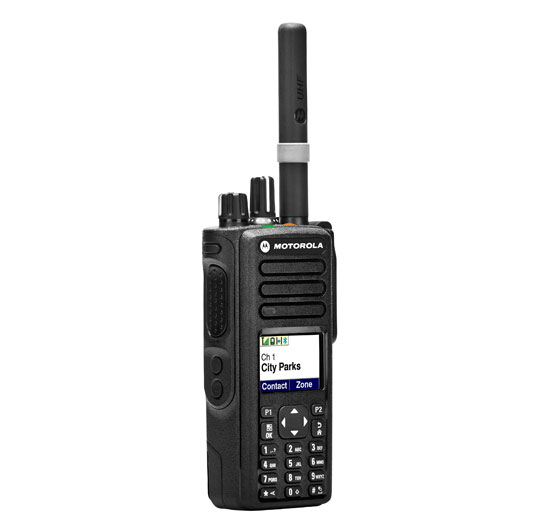

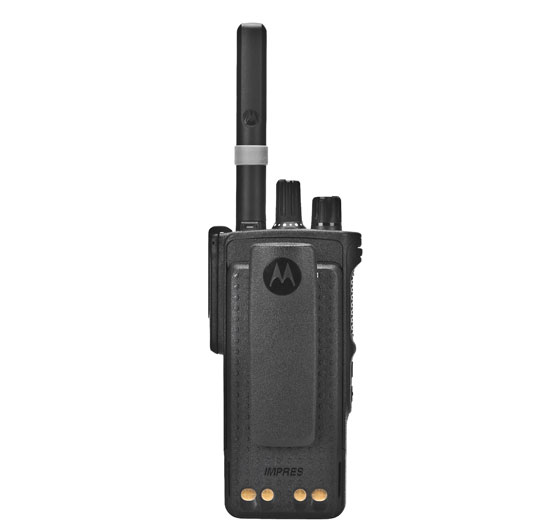

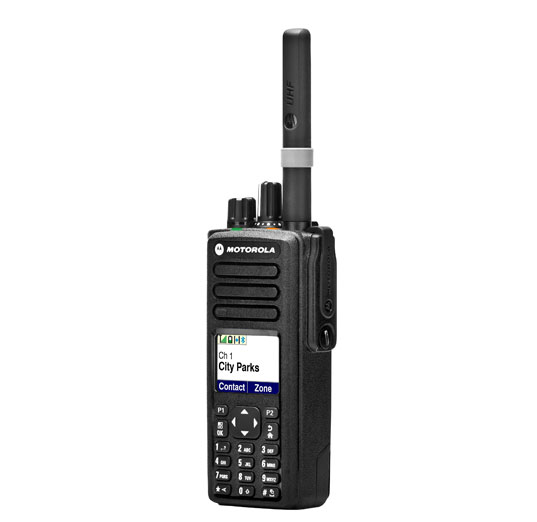

Motorola DP4801E VHF Handheld Radio
Item number: DP4801E VHF
This product has been discontinued and is no longer available for sale. A replacement model can be found at the following link:
The Motorola DP4801E has a capacity of 1000 channels and features a 5-line color LCD display that remains clearly visible even in direct sunlight. Below the screen are quick navigation buttons and a full keypad, allowing users to compose messages. The radio is easy to use, equipped with five programmable buttons and a dedicated emergency call button.
The Motorola DP4801E includes a built-in GNSS system (GPS and GLONASS) and Bluetooth 4.0. Optional features include Wi-Fi, a “man-down” function, and indoor tracking.
The DP4801E also offers excellent protection against water and dust ingress, meeting the IP68 standard.
Warranty:
The 24-month warranty applies only to the radio itself and does not cover accessories (battery, charger, antenna, belt clip) included in the package.
A 12-month warranty applies to the battery, charger, antenna, and belt clip (when used according to the manufacturer’s recommendations).
General Specifications:
-
Number of channels: 1000
-
Analog-digital operation
-
IP68 rated
-
Frequency range: VHF (136–174 MHz) and UHF (403–527 MHz)
-
Power output: VHF (1 W, 5 W), UHF (1 W, 4 W)
-
Voltage: 7.5 V
-
Operating temperature: -30°C to +60°C
-
GPS: Yes
Radio Dimensions with Battery:
-
IMPRES Li-Ion 2100 mAh IP68 (PMNN4491B): 130 × 55 × 36 mm
-
IMPRES Li-Ion 3000 mAh LV IP68 (PMNN4488A): 130 × 55 × 41 mm
-
NiMH 1400 mAh IP67: 130 × 55 × 39 mm
Radio Weight with Battery:
-
IMPRES Li-Ion 2100 mAh IP68 (PMNN4491B): 330 g
-
IMPRES Li-Ion 3000 mAh LV IP68 (PMNN4488A): 350 g
-
NiMH 1400 mAh IP67: 405 g
Battery Features:
-
IMPRES Li-Ion 2100 mAh IP68 (PMNN4491B): Analog: 14.5 h / Digital: 19.0 h
-
IMPRES Li-Ion 3000 mAh LV IP68 (PMNN4488A): Analog: 21.5 h / Digital: 28.0 h
-
NiMH 1400 mAh IP67: Analog: 9.5 h / Digital: 12.0 h
Transceiver:
-
Channel spacing: 12.5 kHz / 20 kHz / 25 kHz
