RAM X-Grip Large Phone Mount w/Handlebar

Kataloška številka: RAM-B-149Z-UN10U

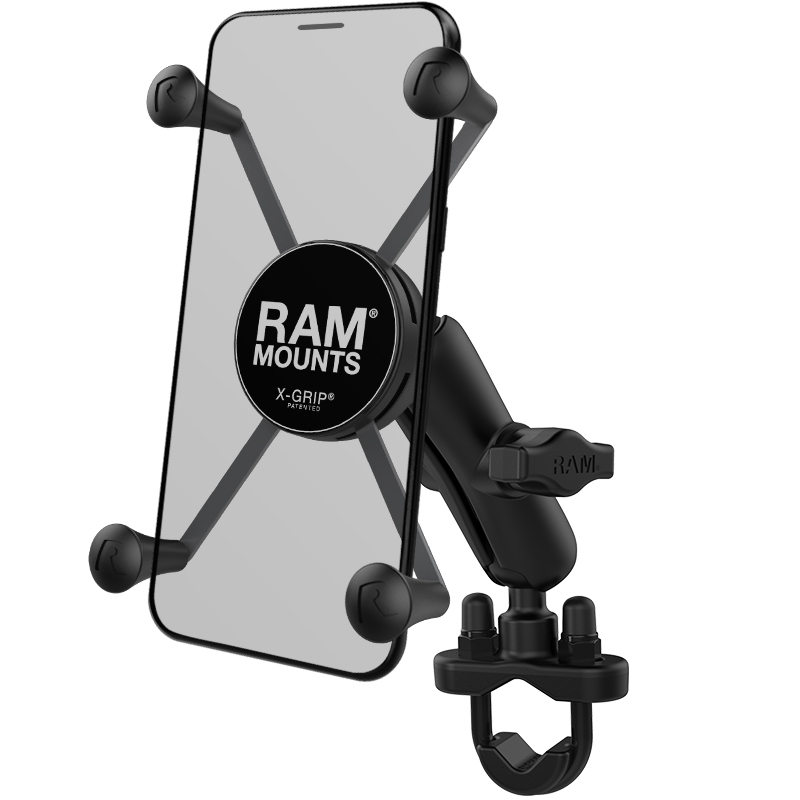

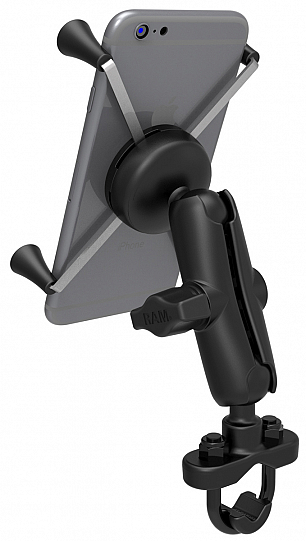

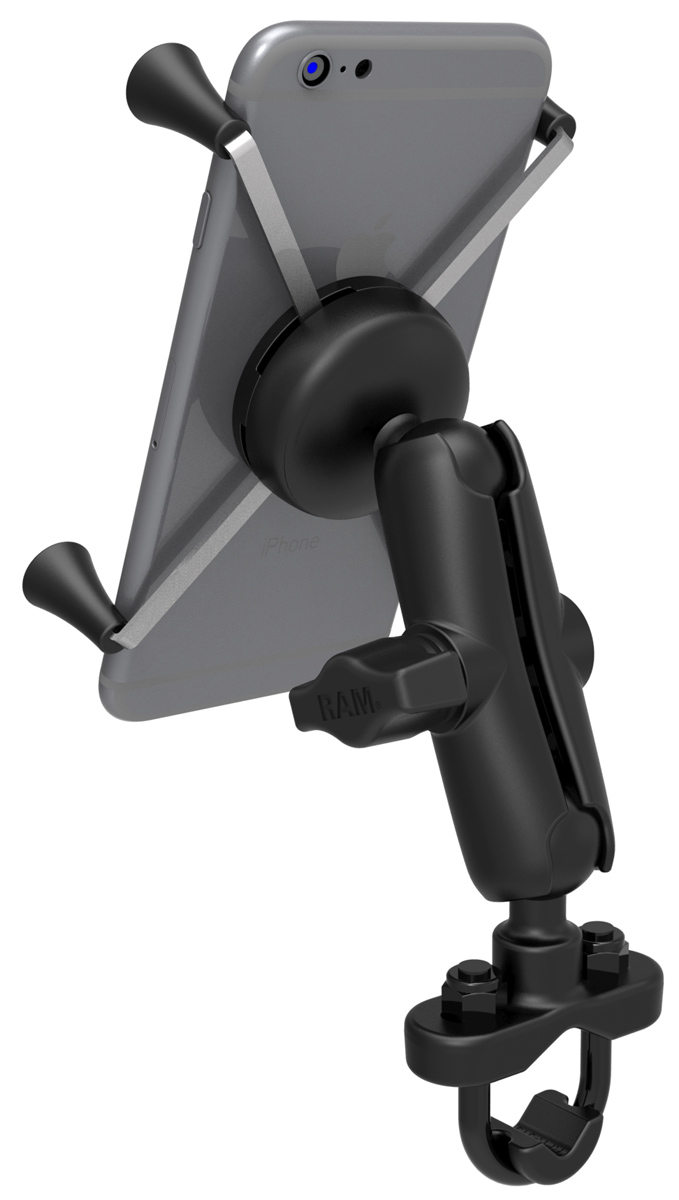

RAM-B-149Z-UN10U – RAM X-Grip Large Phone Mount with Handlebar U-Bolt Base

FEATURES

  • Spring-loaded ‘X’ design for large phones with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Includes U-bolt base that accommodates rails from .5″ (12.7 mm) to 1.25″ (31.75 mm) in diameter and a medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty



Ni na zalogi
Cena brez DDV: 90,38  Cena: 110,26

OVERVIEW

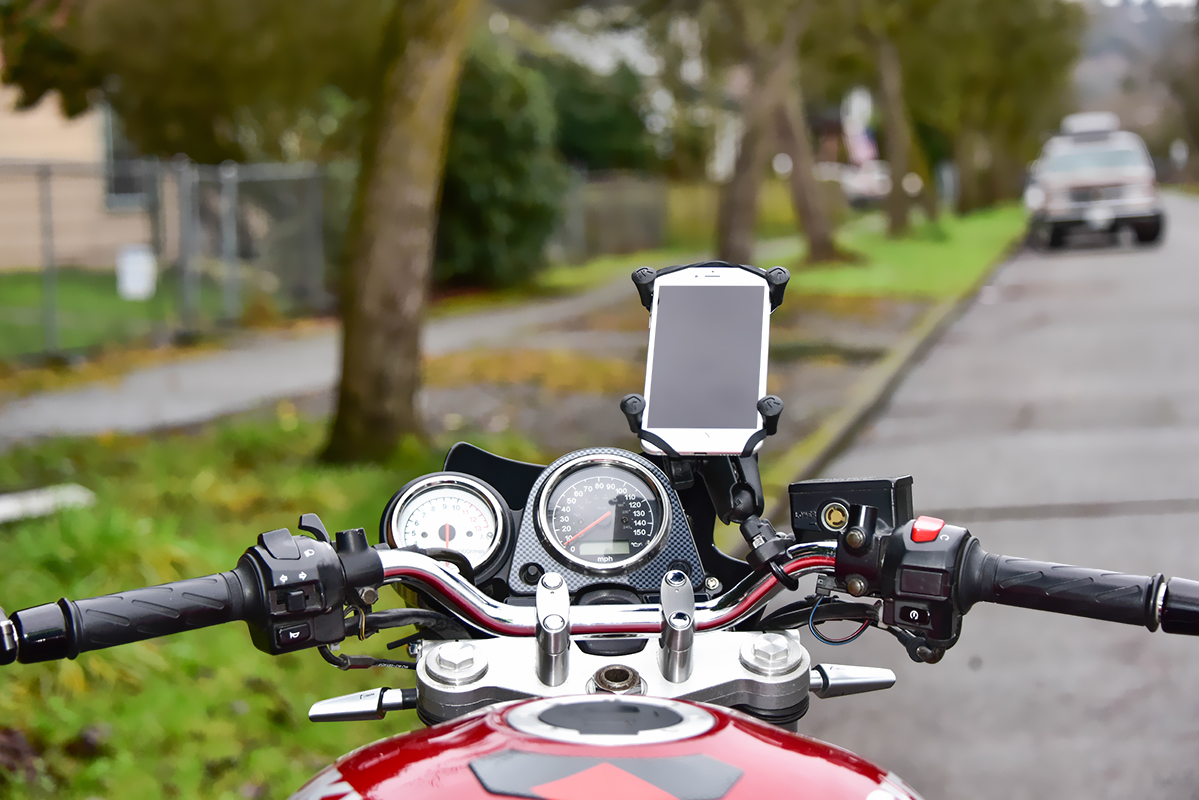

Ideal for handlebars, the RAM-B-149Z-UN10U consists of a zinc-coated U-bolt base, medium length double socket arm, and the popular spring-loaded RAM® X-Grip® large phone holder. In addition, hardware is included to accommodate rails from .5″ – 1.25″ (12.7 mm – 31.75 mm) in diameter. The RAM® X-Grip® features an ‘X’ design that expands and contracts to provide a perfect fit for your device – even if it’s in a case. Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite, this large version of the RAM® X-Grip® fits phones ranging from 1.75″ (44.45  mm) to 4.5″ (114.3  mm) in width and keeps your device completely functional and accessible. RAM® ball and socket technology allows for near-infinite adjustability to achieve the ideal viewing angle – while also extending the life of your phone by providing shock and vibration damping. For outdoor applications, the RAM® X-Grip® includes a device tether that is recommended for added security and peace of mind.

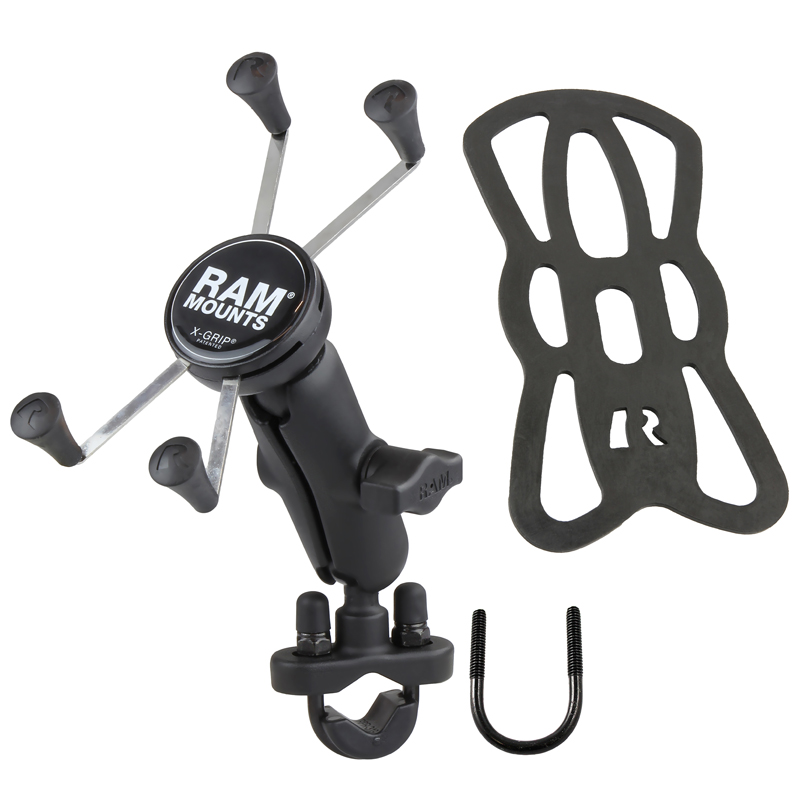

  • HARDWARE INCLUDED
    (1) Optional Tether
    (1) Glue Tube for Rubber Caps
    (1) 1/4″-20 U-Bolt for .5″ – 1″ (12.7 mm – 25.4 mm) Rails
    (1) 1/4″-20 U-Bolt for 1″ – 1.25″ (25.4 mm – 31.75 mm) Rails
    (2) 1/4″-20 Nylock Nuts
    (2) Rubber Caps
    (1) U-Bolt Spacer



  • HOLDER DIMENSIONS
    Width Range: 1.75″ – 4.5″ (44.45 mm – 114.3 mm)
    Depth Range: .875″ (22.22 mm) max



  • CLAMP RANGE
    .5″ – 1.25″ (12.7 mm – 31.75 mm) diameter



  • SOCKET-TO-SOCKET LENGTH
    3″ (76.2 mm)



  • BALL/SOCKET SIZE
    B Size (1″) (25.4 mm)



  • WEIGHT CAPACITY
    Standard Use: 2 lbs (907.18 g)
    Heavy-Duty Use: 1 lb (453.59 g)



  • MATERIALS
    Marine-grade aluminum
    High strength composite
    Stainless steel



  • PACKAGING TYPE
    Poly Bag



  • WEIGHT
    0.75 lbs. (340.19 g)



  • ADDITIONAL INFORMATION

xgrip un10 animation of cradle dimensions

COMPATIBLE DEVICES

  • Apple
    iPhone 6s Plus
    iPhone 7 Plus
    iPhone 8 Plus
    iPhone Xs Max
    iPhone 11 Pro Max
    iPhone 12 Pro Max



  • Blackberry
    Evolve X



  • Blackview
    BV9900
    BV9900 Pro



  • Cat
    S42
    S62
    S62 Pro



  • Garmin
    Drive 50
    Drive 51 LM
    Drive 52
    Drive 61 LM
    DriveSmart 51 LMT-S
    DriveSmart 61 LMT-S
    DriveTrack 71
    Nuvi 2788LM
    RV 660LMT
    RV 770 LMT-S



  • Google
    Pixel 2 XL
    Pixel 3 XL
    Pixel 3a XL



  • HTC
    Bolt
    U Ultra



  • Huawei
    Mate 20 X



  • LG
    Fiesta 2 LTE
    Fiesta LTE
    G8S ThinQ
    Harmony
    Stylo 2 V
    Stylo 3
    Stylo 3 Plus Titan
    Stylo 4
    V20
    V50 ThinQ
    X charge
    X venture



  • Magellan
    TR5
    TR7



  • Motorola
    moto e4 plus
    moto g4
    moto z2
    moto z2 play
    moto z3



  • Rand
    McNally Road Explorer 5
    McNally TND 540



  • Razer
    Phone 2



  • Samsung
    Galaxy A7
    Galaxy A7 (2017)
    Galaxy A7 (2018)
    Galaxy A8
    Galaxy A8 (2016)
    Galaxy A9 (2016)
    Galaxy A9 Pro (2016)
    Galaxy A9 (2018)
    Galaxy A70
    Galaxy A80
    Galaxy A90 5G
    Galaxy C7
    Galaxy C7 Pro
    Galaxy C9 Pro
    Galaxy E7
    Galaxy Grand Neo Plus
    Galaxy J7
    Galaxy J7 Max
    Galaxy J7 V
    Galaxy Note 5
    Galaxy Note 10 Plus
    Galaxy Note20 Ultra
    Galaxy On7
    Galaxy S10 5G
    Galaxy S8
    Galaxy S8 Active
    Galaxy S21 5G
    Galaxy S21+ 5G
    Galaxy S21 Ultra 5G



  • Sonim
    RS60



  • Sony
    Xperia C4
    Xperia L2
    Xperia XA Ultra
    Xperia XA1 Ultra
    Xperia XA2 Ultra
    Xperia XZ Premium
