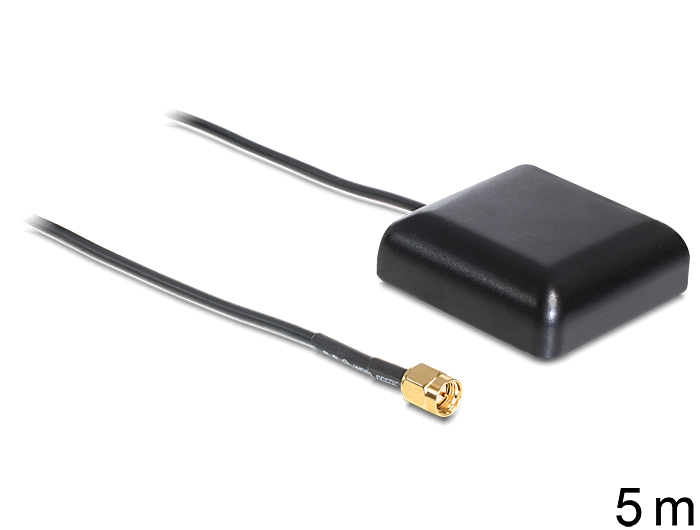

GPS Antenna with SMA connector

Kataloška številka: GPSant

GPS Antenna with SMA connector by Navilock can be used with an existing GPS receiver or PNA with SMA connection. Improvement of reception will be provided by placing the antenna, e.g. on the hat rack or car roof, where it has a better or free view to the sky. The antenna is waterproof and can temporary also be used outside of the vehicle.

Na zalogi
Cena brez DDV: 25,00  Cena: 30,50

Package content

  • GPS antenna

Package

  • Zip poly bag

Specification

  • External active additional antenna for GPS receiver
  • internal patchantenna: 25 x 25 x 4 mm
  • Ground plate metal: 40 x 40 mm (PCB)
  • Frequency range: 1575.42 MHz +/- 1.02 MHz
  • Bandwidth > 10MHz
  • VSWR: 1.5 typ.
  • Gain: 5 dBic (7 cm x 7 cm ground plane)
  • Polarisation: RHCP LNA
  • Gain: 37 dB
  • Voltage: 3.0 ~ 5.0 V
  • VSWR: 1.5 typ.
  • Noise figure: 1.5 @ 25°C +/- 10 °C
  • SMA plug: brass gold plated
  • SMA contact: gold plated
  • Cable type: RG-174
  • Impedance:  50 Ohm
  • Cable length: 5 m
  • Cable attenuation: 5.70 dB
  • Dimension: 50.6 x 50.6 x 15.1 mm
  • Current: typ. 25.5 mA @ 5.0 V
  • IPX-6
  • Magnetical bottom
  • Working temperature: -40 °C ~ 80°C
