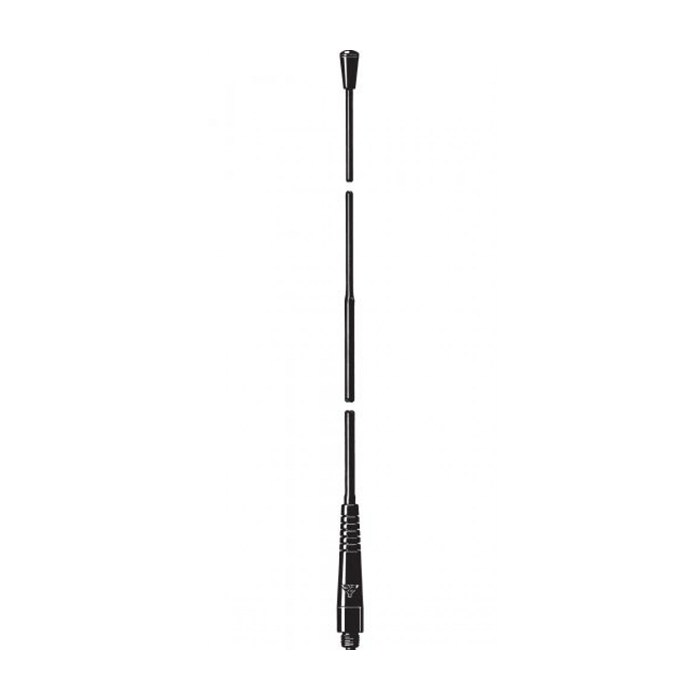

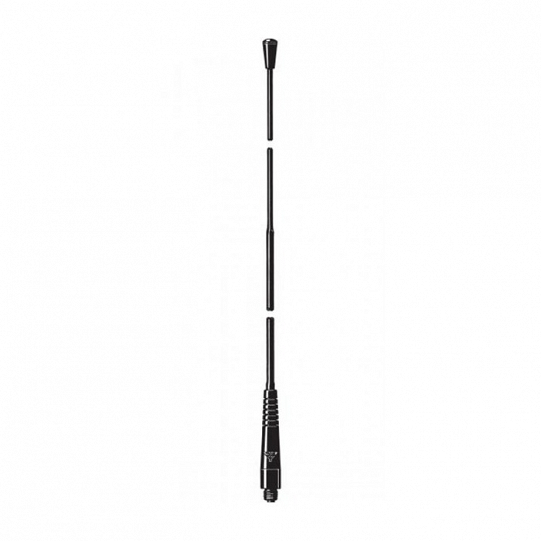

Antena FSP 2/h-DP4400 FME ročna

Kataloška številka: FSP 2/h-DP4400

Description:

  • Highly flexible, polyethylene covered StraightFlex steel wire.
  • Full size ¼ λ antenna whip.
  • Highest quality materials in an elegant and slender design.
  • Delivered factory tuned and tested to ensure minimum VSWR and optimum performance.
  • Provided with universal FME-connection system for optimum flexibility and easily exchangeable connectors.
  • Designed for use with the following of Procoms line of black FME-connectors (to be ordered separately): BFME-UHF, BFME-BNC, BFME-TNC, BFME-N, BFME-EBNC and BFME-ETNC.

The FSP 2 is also available with SMA male connector and different thread studs, but in this case with fixed, non-exchangeable connector (not FMEconnection system). Information on these special versions on request.

Na zalogi
Cena brez DDV: 45,00  Cena: 54,90

Antena FSP 2/h-DP4400 FME ročna je kompatibilna z ročnimi radijskimi postajami Motorola Solutions DP4400, DP4400E, DP4600, DP4600E, DP4800, DP4800E, DP4401, DP4401E, DP4601, DP4601E, DP4801, DP4801E, DP3441, DP3441E, DP3661, DP3661E, DP2400, DP2400E, DP2600, DP2600E

Electrical specifications:

  • Model: FSP 2/…-FME
  • Frequency: 2 m band covered by two models
  • Antenna type: Antenna for portable equipment
  • Max. input power: 100 W
  • Polarization: Vertical
  • Impedance: 50 Ω
  • Gain: 0 dB (compared to a ¼ λ portable antenna)
  • VSWR: < 2.0:1 when mounted directly on portable equipment
  • Bandwidth: ≥ 20 MHz @ VSWR ≤ 2.5

Mechanical specifications:

  • Connections: FME(f) (Exchangeable BFME-connectors to be ordered separately)
  • Materials: Polyethylene covered flexible steel wire
    Black POM
  • Colour: Black
  • Height: Approx. 490 mm / 19.29 in.
  • Weight: Approx. 0.035 kg / 0.08 lb.Description
