RAM X-Grip Phone Mount with 9mm Angled Bolt Head Adapter

Item number: RAP-B-272-A-UN7U

RAP-B-272-A-UN7U – RAM X-Grip Phone Mount with 9mm Angled Bolt Head Adapter

FEATURES

  • Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your phone; includes optional device tether for peace of mind during rugged use
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Out of stock
Price without VAT: 74,33  Price: 90,68

OVERVIEW

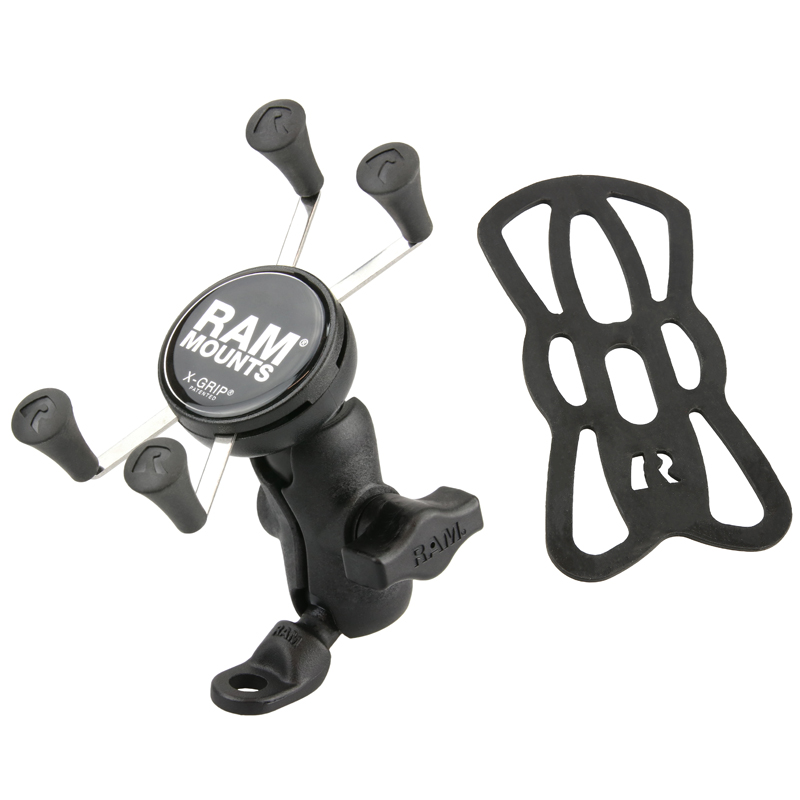

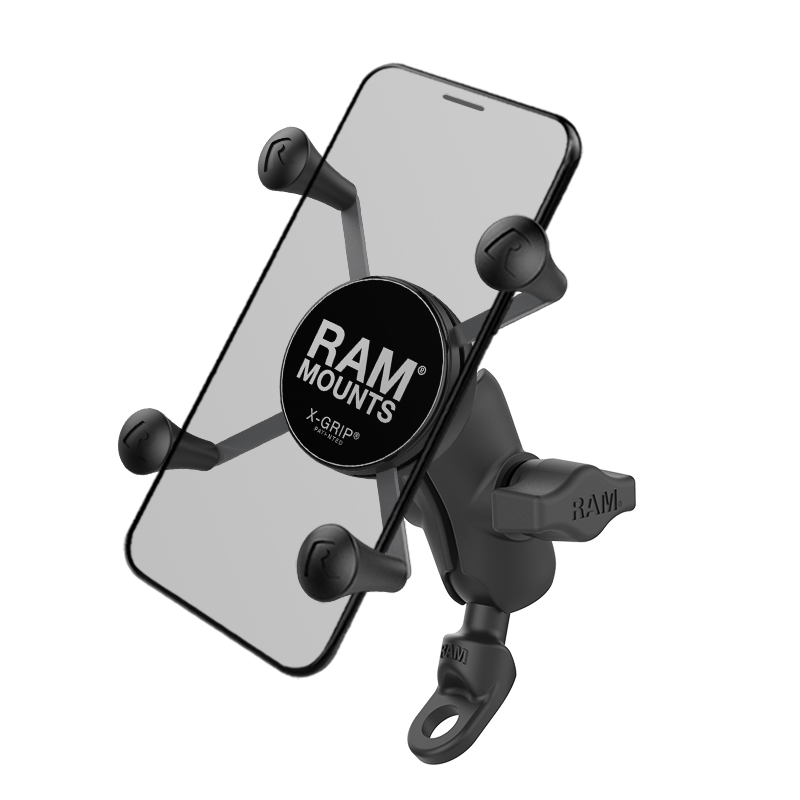

The RAP-B-272-A-UN7U consists of an angled base with 9mm hole, short composite double socket arm and universal spring loaded RAM® X-Grip® cradle for cell phones. The angled base is often used on motorcycles, attaching to the mirror frame, the main brand of bike for this part is BMW. The included RAM® X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded RAM® X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today’s vehicles, the RAM® X-Grip® is the cell phone cradle evolved. The RAM® X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

  • HARDWARE INCLUDED
    (1) Optional Tether
    (1) Glue Tube for Rubber Caps



  • HOLDER DIMENSIONS
    Width Range: 1.875″ – 3.25″ (47.62 mm – 82.55 mm)
    Depth Range: .875″ max (22.22 mm)



  • SOCKET-TO-SOCKET LENGTH
    1.75″ (44.45 mm)



  • BALL/SOCKET SIZE
    B Size (1″) (25.4 mm)



  • WEIGHT CAPACITY
    Standard Use: 2 lbs (907.18 g)
    Heavy-Duty Use: 1 lb (453.59 g)



  • MATERIALS
    Marine-grade aluminum
    High strength composite
    Stainless steel



  • PACKAGING TYPE
    Poly Bag



  • WEIGHT
    0.43 lbs. (195.04 g)



  • ADDITIONAL INFORMATION
    xgrip un7 animation of cradle dimensions
  • Apple
    iPhone 6s
    iPhone 7
    iPhone 8
    iPhone SE
    iPhone X
    iPhone Xs
    iPhone Xr
    iPhone 11
    iPhone 11 Pro
    iPhone 12
    iPhone 12 mini
    iPhone 12 Pro



  • Blackberry
    DTEK 50
    DTEK 60
    KEYone



  • Garmin
    Approach G8
    Edge 1030
    Edge Explore 1000



  • Google
    Pixel
    Pixel XL
    Pixel 2
    Pixel 3
    Pixel 3a
    Pixel 4
    Pixel 4 XL
    Pixel 4a
    Pixel 5



  • HTC
    U11
    U11 life



  • Huawei
    Mate 20 Pro
    P30 Pro



  • LG
    Aristo
    Aristo 2
    Exalt LTE
    G5
    G5 Silver
    G6
    G6+
    G7 ThinQ
    G8 ThinQ
    Grace LTE
    K20
    K20 Plus
    K20 V
    K3
    K3 2017
    K8 2017
    Phoenix 3
    Q6
    Rebel 2 LTE
    Rebel 3 LTE
    Risio 2
    Tribute Dynasty
    Tribute HD
    V30
    V35 ThinQ
    V40 ThinQ
    Wine LTE
    Zone 4



  • Motorola
    moto e4
    moto g5s plus
    moto g6
    moto g7 power
    moto X2
    moto X4
    razr



  • Nokia
    1
    2
    3
    5
    6
    8
    9 PureView
    216
    230
    150 Dual SIM
    3310 Dual SIM
    7 plus
    8 Sirocco
    8110 4G



  • OnePlus
    6T
    7
    7T
    7T Pro
    7 Pro



  • Samsung
    Galaxy A3
    Galaxy A3 (2016)
    Galaxy A3 (2017)
    Galaxy A5
    Galaxy A5 (2016)
    Galaxy A5 (2017)
    Galaxy A6
    Galaxy A6+
    Galaxy A7 (2016)
    Galaxy A8+
    Galaxy A8 (2018)
    Galaxy A8+ (2018)
    Galaxy A10
    Galaxy A10e
    Galaxy A10s
    Galaxy A11
    Galaxy A20
    Galaxy A20e
    Galaxy A30
    Galaxy A40
    Galaxy A50
    Galaxy A50s
    Galaxy AMP 2
    Galaxy AMP Prime
    Galaxy AMP Prime 2
    Galaxy C5
    Galaxy E5
    Galaxy Express 3
    Galaxy Express Prime 2
    Galaxy Grand Max
    Galaxy J1
    Galaxy J1 (2016)
    Galaxy J2
    Galaxy J2 (2016)
    Galaxy J2 (2017)
    Galaxy J3 (2016)
    Galaxy J3 (2017) International
    Galaxy J3 Emerge
    Galaxy J3 Prime
    Galaxy J3 V
    Galaxy J5
    Galaxy J5 (2016)
    Galaxy J5 (2017)
    Galaxy J7 (2016)
    Galaxy J7 (2017)
    Galaxy J7 Perx
    Galaxy J7 Prime
    Galaxy J7 Prime 2
    Galaxy Luna
    Galaxy Note 8
    Galaxy Note Fan Edition
    Galaxy Note 10
    Galaxy Note20
    Galaxy On NXT
    Galaxy On5
    Galaxy On7 Prime
    Galaxy On8
    Galaxy S5
    Galaxy S5 Neo
    Galaxy S6
    Galaxy S6 Active
    Galaxy S6 Edge
    Galaxy S6 Edge+
    Galaxy S7
    Galaxy S7 Active
    Galaxy S7 Edge
    Galaxy S8+
    Galaxy S9
    Galaxy S9+
    Galaxy S10
    Galaxy S10+
    Galaxy S10e
    Galaxy S20
    Galaxy S20+
    Galaxy S20 FE 5G
    Galaxy S20 Ultra 5G
    Galaxy V Plus
    Galaxy XCover 3
    Galaxy XCover 4
    Galaxy XCover 5
    Galaxy Z Fold2
    Galaxy Z Fold3
    W2017
    Z1
    Z2
    Z3
    Z4



  • Sony
    Xperia L1
    Xperia X
    Xperia X Compact
    Xperia X Performance
    Xperia XA
    Xperia XA1
    Xperia XA1 Plus
    Xperia XA2
    Xperia XZ
    Xperia XZ1
    Xperia XZ1 Compact
    Xperia XZ2
    Xperia XZ2 Compact
    Xperia XZ3
    Xperia XZs
    Xperia Z3
    Xperia Z3+
    Xperia Z5
    Xperia Z5 Compact



  • Xiaomi
    Mi 9
    Mi 9 Explorer
    Mi Mix 2S
    Mi Mix 3



  • ZTE
    Axon 9 Pro
    Axon 10 Pro
