RAM X-Grip Handlebar U-Bolt Mount for 9″-10″ Tablets

Item number: RAM-B-149Z-UN9U

RAM-B-149Z-UN9U – RAM X-Grip Handlebar U-Bolt Mount for 9″-10″ (228.6 mm – 254 mm) Tablets

FEATURES

  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your tablet; fits most 9″-10″ (228.6 mm – 254 mm) tablets and includes optional device safety tether
  • Backed by a lifetime warranty
Out of stock
Price without VAT: 169,52  Price: 206,81

OVERVIEW

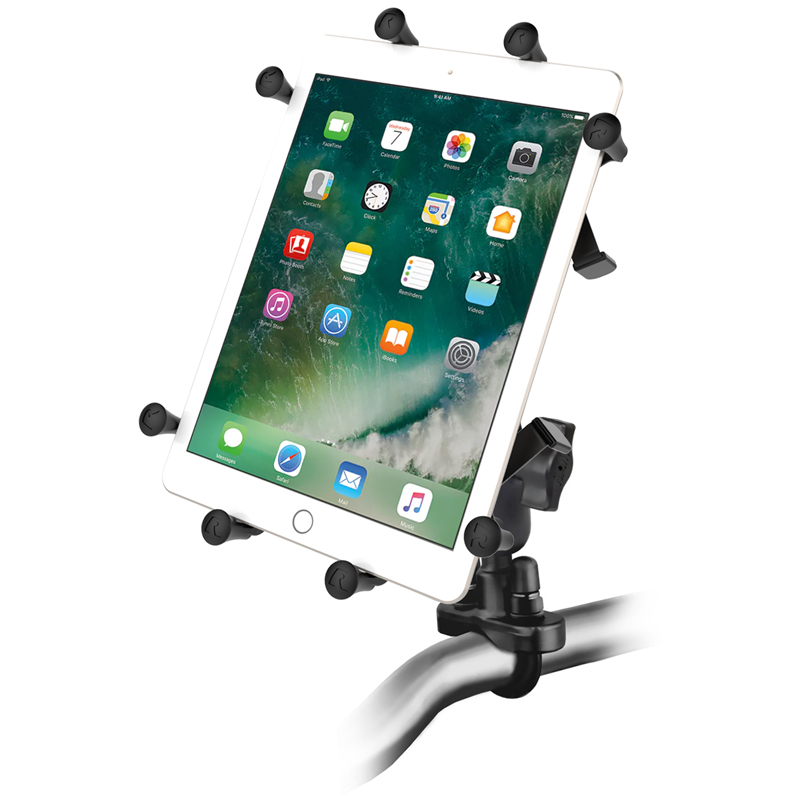

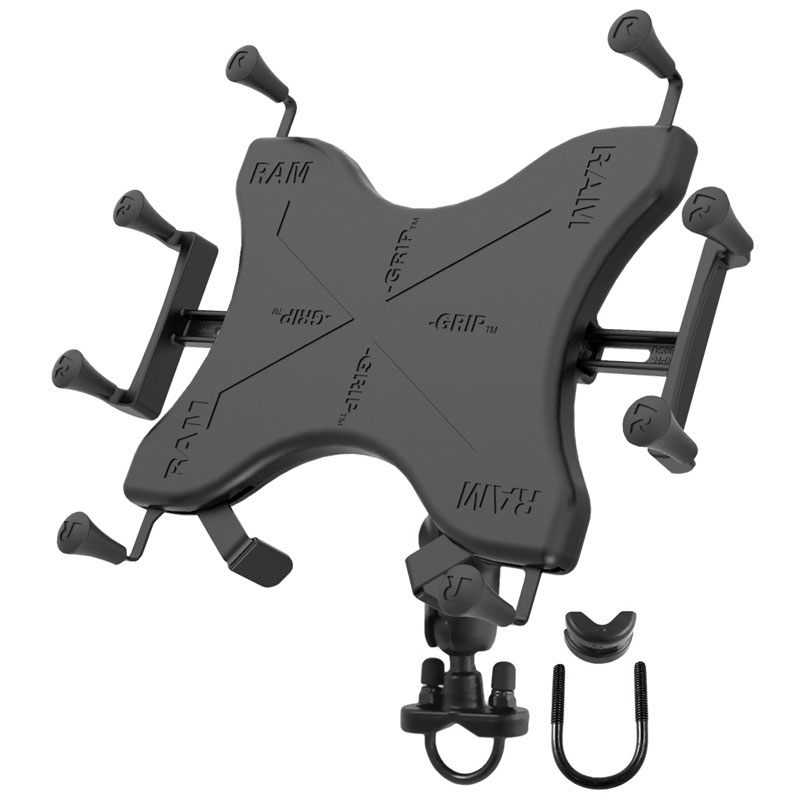

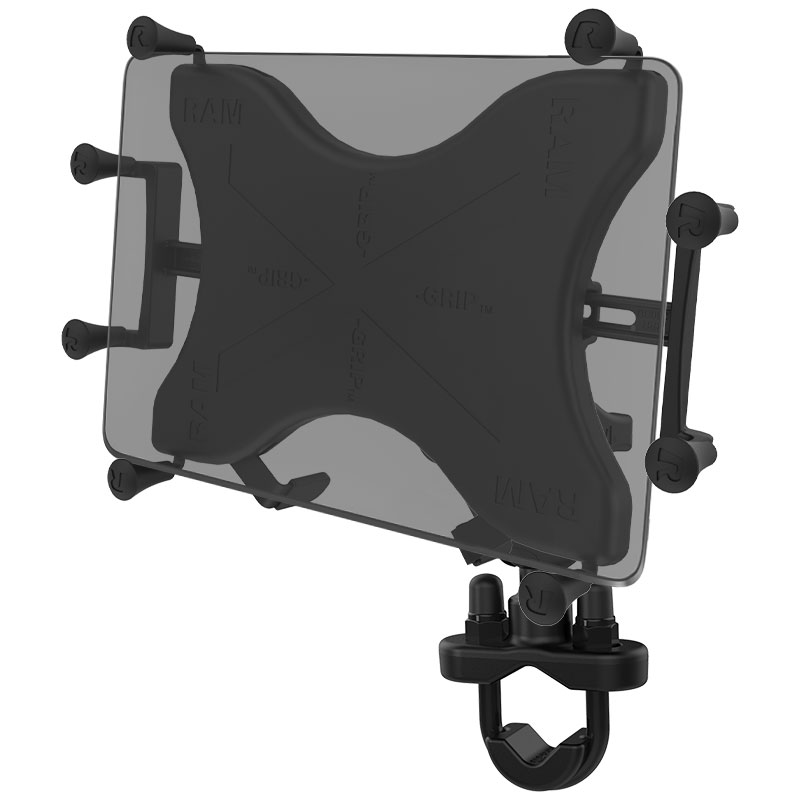

The RAM-B-149Z-UN9U consists of a zinc coated u-bolt base, double socket arm, round base adapter and universal X-Grip® clamping cradle for 10″ (254 mm) tablets. Included in this package is hardware that will accommodate rails from 0.50″ (12.7 mm) to 1.25″ (31.75 mm) in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″ (12.7 mm). The mount is designed with a RAM 1″ (25.4 mm) diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The X-Grip® clamping cradle consists of a composite spring loaded cradle, expandable grip arms and additional bottom support keeper. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® clamping cradle expands and contracts for perfect fit of most 10″ (254 mm) tablets with or without sleeves, as well as some smaller tablets. Please verify dimensions of your tablet below for compatibility with the X-Grip®.

  • HARDWARE INCLUDED
    Assembly Hardware
    (1) 1/4″-20 U-Bolt for .5″ – 1″  (12.7 mm – 25.4 mm) Rails
    (1) 1/4″-20 U-Bolt for 1″ – 1.25″ (25.4 mm – 31.75 mm) Rails
    (2) 1/4″-20 Nylock Nuts
    (2) Rubber Caps
    (1) U-Bolt Spacer



  • HOLDER DIMENSIONS
    Max Height: 10.25″ (260.35 mm) (using optional supports)
    Width Range: 6.25″ – 8.1″ (158.75 mm – 205.74 mm)
    Max Depth: .875″ (22.22 mm)



  • CLAMP RANGE
    .5″ – 1.25″ (12.7 mm – 31.75 mm) diameter



  • SOCKET-TO-SOCKET LENGTH
    3″ (76.2  mm)



  • BALL/SOCKET SIZE
    B Size (1″) (25.4 mm)



  • WEIGHT CAPACITY
    Standard Use: 2 lbs (907.18 g)
    Heavy-Duty Use: 1 lb (453.59 g)



  • MATERIALS
    Marine-grade aluminum
    High strength composite



  • PACKAGING TYPE
    Poly Bag



  • WEIGHT
    1.73 lbs (784.71 g)
  •  Amazon
    Fire HD 10



  • Apple
    iPad (1st Generation)
    iPad (3rd Generation)
    iPad (4th Generation)
    iPad (5th Generation)
    iPad (6th Generation)
    iPad (7th Generation)
    iPad (8th Generation)
    iPad 2
    iPad 9.7 (2017)
    iPad 9.7 (2018)
    iPad Air
    iPad Air 2
    iPad Air 3
    iPad Air 4
    iPad Pro 9.7 (1st Generation)
    iPad Pro 10.5 (2nd Generation)
    iPad Pro 11″
    iPad Pro 11″ (2020)
    iPad Pro 11″ (2021)



  • ASUS
    MeMO Pad FHD 10
    Transformer Pad
    ZenPad 10
    ZenPad 3S 10
    ZenPad Z10



  • Dell
    Venue 10 7000
    Venue 11 Pro
    Venue 11 Pro 7000



  • Google
    Nexus 10
    Pixel C



  • HP
    ElitePad 900
    ElitePad 900 G1
    Pro 610
    Pro Slate 10.1



  • Huawei
    MediaPad M2 10.0
    MediaPad M3 Lite 10.0
    MediaPad T3 10



  • Lenovo
    Miix 3
    S6000
    Tab 2 A10-70
    Tab 4 10
    Tab 4 10 Plus
    Tab A10
    Tab3 10 Business
    ThinkPad 10
    ThinkPad Tablet 2
    Yoga Book
    Yoga Tab 3 10
    Yoga Tab 3 Pro
    Yoga Tablet 10
    Yoga Tablet 10 HD+
    Yoga Tablet 2 (10 inch)



  • LG
    G Pad 10.1
    G Pad II 10.1
    G Pad X 10.1
    G Pad X II 10.1



  • Microsoft
    Surface 2
    Surface Pro
    Surface Pro 2



  • Samsung
    Galaxy Book 10.6
    Galaxy Tab 10.1
    Galaxy Tab 2 10.1
    Galaxy Tab 3 10.1
    Galaxy Tab 4 10.1
    Galaxy Tab A 9.7
    Galaxy Tab A 10.5
    Galaxy Tab Active Pro
    Galaxy Tab Pro 10.1
    Galaxy Tab S 10.5
    Galaxy Tab S2 9.7
    Galaxy Tab S3 9.7
    Galaxy Tab S4 10.5
    Galaxy Tab S5e
    Galaxy Tab S6
    Galaxy Tab S7
    Galaxy Tab S7 Plus



  • Sony
    Vaio Tap 11
    Xperia Tablet S
    Xperia Tablet Z



  • Vankyo
    MatrixPad Z4 10″



  • Zebra
    ET50 10″
    ET55 10″
