RAM X-Grip Handlebar U-Bolt Mount for 7″-8″ Tablets

Item number: RAM-B-149Z-UN8U

RAM-B-149Z-UN8U – RAM X-Grip Handlebar U-Bolt Mount for 7″-8″ (177.8 mm – 203.2 mm) Tablets

FEATURES

  • Spring-loaded ‘X’ design with rubber caps sports great holding power without hiding your tablet; fits most 7″-8″ (177.8 mm – 203.2 mm) tablets and includes optional device tether for peace of mind during rugged use
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Out of stock
Price without VAT: 101,49  Price: 123,82

OVERVIEW

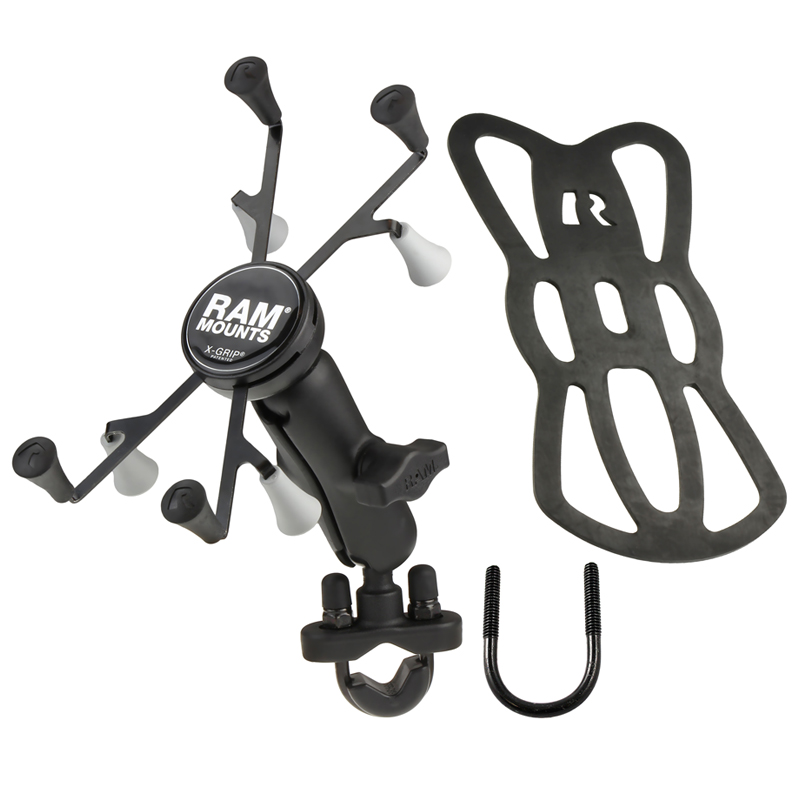

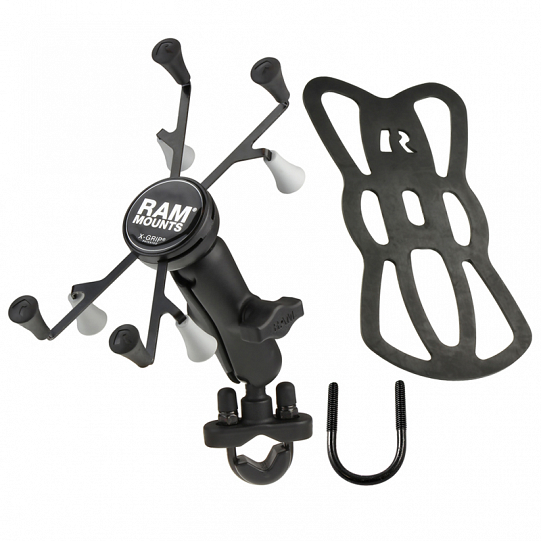

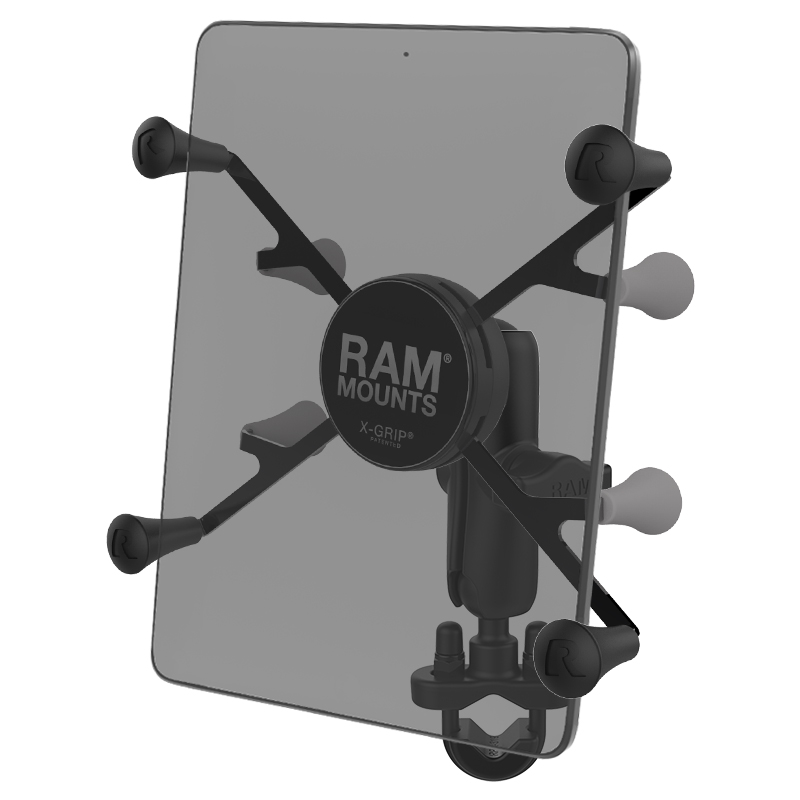

The RAM-B-149Z-UN8U consists of a zinc coated u-bolt base, double socket arm and universal X-Grip® clamping cradle for 7″-8″ (177.8 mm – 203.2 mm) tablets. Included in this package is hardware that will accommodate rails from 0.50″ (12.7 mm) to 1.25″ (31.75 mm) in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 0.5″ (12.7 mm). The mount is designed with a RAM 1″ (25.4  mm) diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your 7″-8″ (177.8 mm – 203.2 mm) tablet. Included are extra easy access grip knobs, located on the back of the cradle for quick release of your tablet. The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

  • HARDWARE INCLUDED
    (1) Optional Tether
    (1) Glue Tube for Rubber Caps
    (1) 1/4″-20 U-Bolt for .5″ – 1″ (12.7 mm – 25.4 mm) Rails
    (1) 1/4″-20 U-Bolt for 1″ – 1.25″ (25.4 mm – 31.75 mm) Rails
    (2) 1/4″-20 Nylock Nuts
    (2) Rubber Caps
    (1) U-Bolt Spacer



  • HOLDER DIMENSIONS
    Width Range: 2.5″ – 5.75″ (63.5 mm – 146.05 mm)
    Depth Range: .875″ (22.22 mm) max



  • CLAMP RANGE
    .5″ – 1.25″ (12.7 mm – 31.75 mm) diameter



  • SOCKET-TO-SOCKET LENGTH
    3″ (76.2 mm)



  • BALL/SOCKET SIZE
    B Size (1″) (25.4 mm)



  • WEIGHT CAPACITY
    Standard Use: 2 lbs (907.18 g)
    Heavy-Duty Use: 1 lb (453.59 g)



  • MATERIALS
    Marine-grade aluminum
    High strength composite
    Stainless steel



  • PACKAGING TYPE
    Poly Bag



  • WEIGHT
    0.8 lbs. (362.87 g)



  • ADDITIONAL INFORMATION

xgrip un7 animation of cradle dimensions

  •  Amazon
    Fire 7
    Fire HD 8
    Kindle
    Kindle Oasis
    Kindle Paperwhite
    Kindle Voyage



  • Apple
    iPad mini (1st Generation)
    iPad mini 2
    iPad mini 3
    iPad mini 4
    iPad mini 5



  • ASUS
    MeMO Pad 8
    VivoTab 8
    ZenPad 8.0
    ZenPad C 7.0
    ZenPad S 8.0
    ZenPad Z8
    ZenPad Z8s



  • Dell
    Venue 7
    Venue 7 (2014)
    Venue 7 3741
    Venue 8
    Venue 8 (2014)
    Venue 8 7840
    Venue 8 Pro
    Venue 8 Pro 5855



  • Google
    Nexus 7



  • HP
    Pro Tablet 408
    Slate 7



  • Huawei
    MediaPad M3
    MediaPad M3 Lite
    MediaPad T1 7.0
    MediaPad T1 8.0
    MediaPad T3 7
    MediaPad T3 8



  • Lenovo
    Ideapad Miix 300
    IdeaTab A1000
    IdeaTab A2107
    IdeaTab A3000
    Tab 2 A7-10
    Tab 2 A7-20
    Tab 2 A7-30
    Tab 2 A8
    Tab 4 8
    Tab 4 8 Plus
    Tab 7 Essential
    Tab A7-30
    Tab A7-40
    Tab A7-50
    Tab A8-50
    Tab M8 HD
    Tab S8
    Tab3 7
    Tab3 8
    Yoga Tablet 8



  • LG
    G Pad 7.0
    G Pad F 8.0 (2nd Gen)
    G Pad F2 8.0
    G Pad II 8.0
    G Pad X 8.0
    G Pad X II 8.0



  • Nvidia
    Shield Tablet



  • Rand
    McNally OverDryve 7
    McNally OverDryve 7 Pro
    McNally OverDryve 7 RV
    McNally OverDryve 7c
    McNally OverDryve 8 Pro
    McNally Road Explorer 7
    McNally Road Explorer 70
    McNally RV Tablet 70
    McNally RVND 7
    McNally TND 740
    McNally TND Tablet 70
    McNally TND Tablet 80



  • Samsung
    Galaxy Tab 2 7.0
    Galaxy Tab 3 7.0
    Galaxy Tab 3 8.0
    Galaxy Tab 3 Lite 7.0
    Galaxy Tab 4 7.0
    Galaxy Tab 4 8.0
    Galaxy Tab 7.7
    Galaxy Tab A 7.0
    Galaxy Tab A 7.0
    Galaxy Tab A 8.0
    Galaxy Tab A 8.0 (2017)
    Galaxy Tab A 8.0 (2018)
    Galaxy Tab A 8.0 (2019)
    Galaxy Tab A 8.4
    Galaxy Tab Active2
    Galaxy Tab E 7.0
    Galaxy Tab E 8.0
    Galaxy Tab Pro 8.4
    Galaxy Tab S 8.4
    Galaxy Tab S2 8.0



  • Vankyo
    MatrixPad Z1 7″
