RAM X-Grip Large Phone Mount

Kataloška številka: RAM-B-138-UN10

FEATURES

  • Spring-loaded ‘X’ design for large phones features rubber caps and sports great holding power; includes optional device tether for peace of mind during rugged use
  • Includes drill-down 2.5″ (63.5 mm) round base and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty



Ni na zalogi
Cena brez DDV: 71,84  Cena: 87,64

OVERVIEW

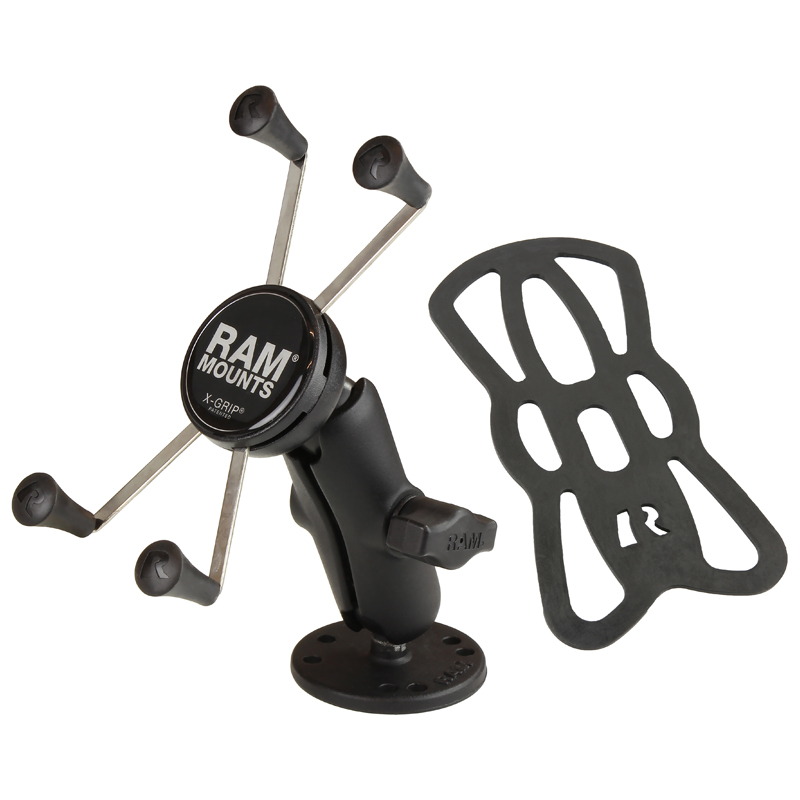

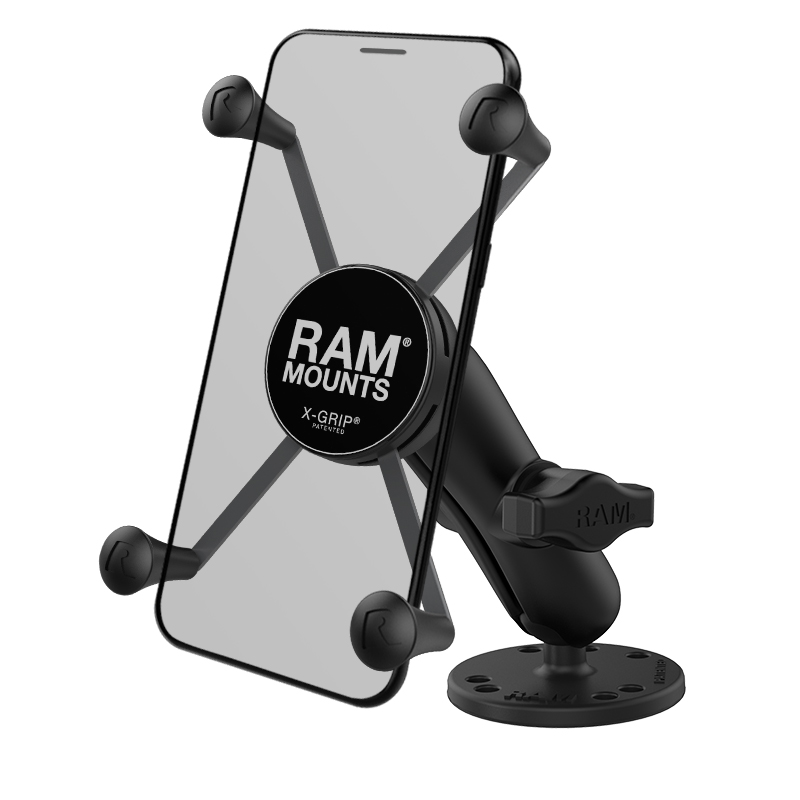

The RAP-B-138-UN10U consists of a 2.5″ (63.5 mm) diameter round base with the universal AMPS hole pattern, double socket arm and universal spring loaded X-Grip® cradle for cell phones. Designed into the mount is a 1″ (25.4 mm) diameter patented rubber ball and socket system with adjustment points at the both ends of the socket arm; this with a twist of the arm knob, allows you can move the mount to your optimum viewing position. The included X-Grip® cradle has a clean and clever four leg design that sports great holding power without hiding your phone behind foam pads and plastic. The spring loaded X-Grip® cradle expands and contracts, allowing for a perfect custom fit of your cell phone. The perfect complement to the modern sleek interior of today’s vehicles, the RAM X-Grip® is the cell phone cradle evolved.

The X-Grip® includes a device tether recommended for outdoor applications. The cradle is compatible with handheld devices that will fit the dimensions listed below. It is important to verify the dimensions of your handheld device with a case/sleeve/skin when determining the overall size.

RAM X-Grip Large Phone Mount with Drill-Down Base

  • HARDWARE INCLUDED
    (1) Optional Tether
    (1) Glue Tube for Rubber Caps



  • HOLDER DIMENSIONS
    Width Range: 1.75″ – 4.5″ (44.45 mm – 114.3 mm)
    Depth Range: .875″ (22.22 mm) max



  • SOCKET-TO-SOCKET LENGTH
    3″ (76.2 mm)



  • HOLE PATTERN
    4-Hole AMPS: 1.181″ x 1.496″ (29.99 mm – 37.99 mm)
    3-Hole 120-Degree: 1.812″  (46.02 mm)Diameter



  • PLATE SIZE
    2.5″ (63.5 mm) Diameter



  • BALL/SOCKET SIZE
    B Size (1″) (25.4 mm)



  • WEIGHT CAPACITY
    Standard Use: 2 lbs (907.18 g)
    Heavy-Duty Use: 1 lb (453.59 g)



  • MATERIALS
    Marine-grade aluminum
    High strength composite
    Stainless steel



  • PACKAGING TYPE
    Retail Bag



  • WEIGHT
    0.71 lbs. (322.05 g)



  • ADDITIONAL INFORMATION

xgrip un10 animation of cradle dimensions

COMPATIBLE DEVICES





Apple
  • iPhone 6s Plus
  • iPhone 7 Plus
  • iPhone 8 Plus
  • iPhone Xs Max
  • iPhone 11 Pro Max
  • iPhone 12 Pro Max

Blackberry

  • Evolve X
Blackview
  • BV9900
  • BV9900 Pro
Cat
  • S42
  • S62
  • S62 Pro
Garmin
  • Drive 50
  • Drive 51 LM
  • Drive 52
  • Drive 61 LM
  • DriveSmart 51 LMT-S
  • DriveSmart 61 LMT-S
  • DriveTrack 71
  • Nuvi 2788LM
  • RV 660LMT
  • RV 770 LMT-S
Google
  • Pixel 2 XL
  • Pixel 3 XL
  • Pixel 3a XL
HTC
  • Bolt
  • U Ultra
Huawei
  • Mate 20 X
LG
  • Fiesta 2 LTE
  • Fiesta LTE
  • G8S ThinQ
  • Harmony
  • Stylo 2 V
  • Stylo 3
  • Stylo 3 Plus Titan
  • Stylo 4
  • V20
  • V50 ThinQ
  • X charge
  • X venture
Magellan
  • TR5
  • TR7
Motorola
  • moto e4 plus
  • moto g4
  • moto z2
  • moto z2 play
  • moto z3
Rand
  • McNally Road Explorer 5
  • McNally TND 540
Razer
  • Phone 2
Samsung
  • Galaxy A7
  • Galaxy A7 (2017)
  • Galaxy A7 (2018)
  • Galaxy A8
  • Galaxy A8 (2016)
  • Galaxy A9 (2016)
  • Galaxy A9 Pro (2016)
  • Galaxy A9 (2018)
  • Galaxy A70
  • Galaxy A80
  • Galaxy A90 5G
  • Galaxy C7
  • Galaxy C7 Pro
  • Galaxy C9 Pro
  • Galaxy E7
  • Galaxy Grand Neo Plus
  • Galaxy J7
  • Galaxy J7 Max
  • Galaxy J7 V
  • Galaxy Note 5
  • Galaxy Note 10 Plus
  • Galaxy Note20 Ultra
  • Galaxy On7
  • Galaxy S10 5G
  • Galaxy S8
  • Galaxy S8 Active
  • Galaxy S21 5G
  • Galaxy S21+ 5G
  • Galaxy S21 Ultra 5G
Sonim
  • RS60
Sony
  • Xperia C4
  • Xperia L2
  • Xperia XA Ultra
  • Xperia XA1 Ultra
  • Xperia XA2 Ultra
  • Xperia XZ Premium
